DCM50207 120W NEMA 23 Brushed DC Servo Motor
Thương hiệu: Leadshine
3.600.000₫
Datasheet: PDF
Drive: DCS810
Features
- Reliable industrial quality
- High performance, Low cost
- Rated voltage:30.3 VDC, Rated power: 120W
- NEMA23 frame size
- 2900 RPM rated speed / 3600 RPM peak
- 4000 CPR (1000-line) incremental encoder
General
Wiring
- Connection Table for Single-ended Encoder:
Pin |
Colour |
Connection (DCS303, DCS810/DCS810S) |
1 |
Blue |
Channel B (EB/EB+) |
2 |
Yellow |
Channel A (EA/EA+) |
3 |
Red |
VCC (E+5V/E+5V) |
4 |
Black |
Ground (EGND/EGND) |
5 |
Green |
Index/NC (NC/NC) |
- Connection Table for Differential Encoder:
Pin |
Colour |
Connection ( DCS810) |
1 |
Black |
Channel A+ (EA+) |
2 |
Blue |
Channel A- (EA-) |
3 |
Yellow |
Channel B+ (EB+) |
4 |
Green |
Channel B- (EB-) |
5 |
Red |
VCC (E+5V) |
6 |
White |
Ground (EGND) |
Typical connection

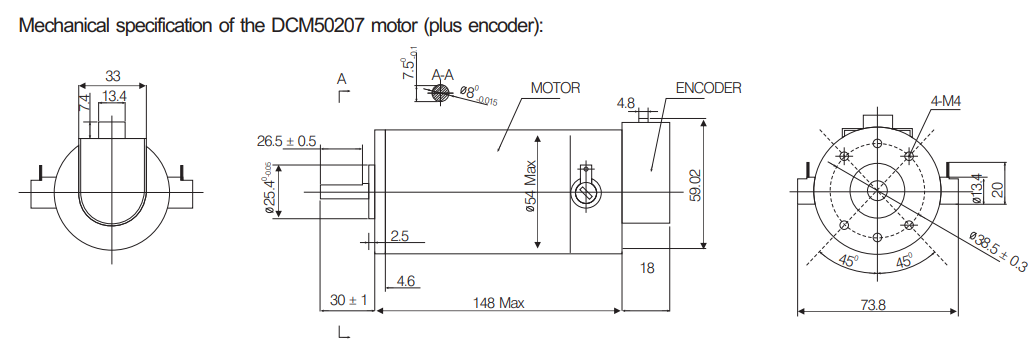

Mechanical
