Driver DCS303

Datasheet: PDF

Feature

Input Voltage: 18-30VDC

Output Current: 3 A (Cont.), 15A(Peak), Power range: 5-90W.

Based on DSP control technology and high smooth servo control algorithm.

Handheld and PC based tuning tools, including Pro Tuner and STU

Feedback resolution ? encoder line count.

Position Following error lock range adjustable

Position error can be eliminated to 1 count, and velocity error can be eliminated to the Desired Velocity* ±0.3%

Electronic gear ratio from 1/255 to 255

Built-in motion controller for self-test with trapezoidal velocity profile

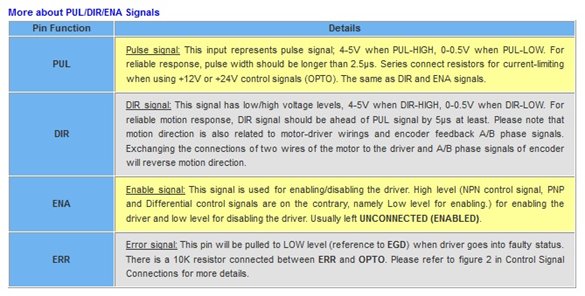

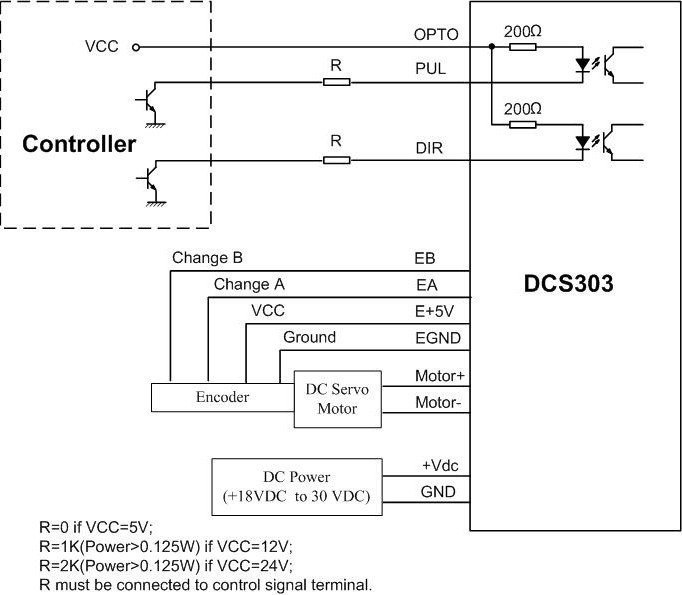

Support PUL/DIR control signals

Opto-isolated inputs, support single-ended signals

10 latest errors self-record function

Over-current, over-voltage, phase error, encoder error, position following error protections

Small size, surface-mount technology

Includent cable connect with computer .
