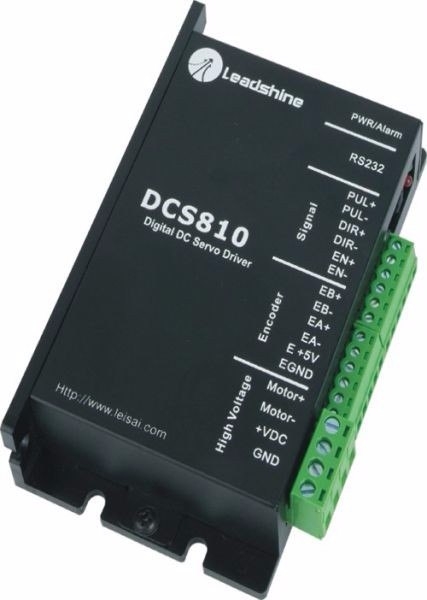

Driver DCS810

Datasheet: PDF

Feature

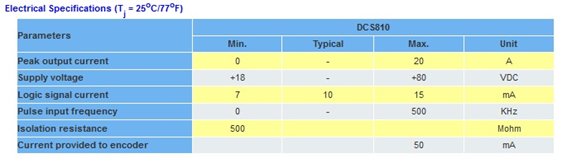

18-80VDC, 0-20A, 20-400W.

Based on DSP control technology and high smooth servo control algorithm.

Parameter visible tuning tools, including Pro Tuner and STU.

Feedback resolution X4 encoder line count.

Position Following error lock range adjustable

Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%

Electronic gear ratio from 1/255 to 255

Built-in motion controller for self-test with trapezoidal velocity profile

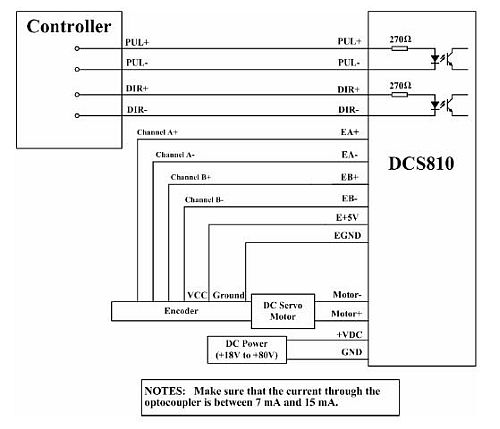

Support PUL/DIR and CW/CCW control signals

Opto-isolated inputs, support single-ended and differential signals

10 latest errors self-record function

Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections

Small size, surface-mount technology

Includent cable RS232 connect with computer .
