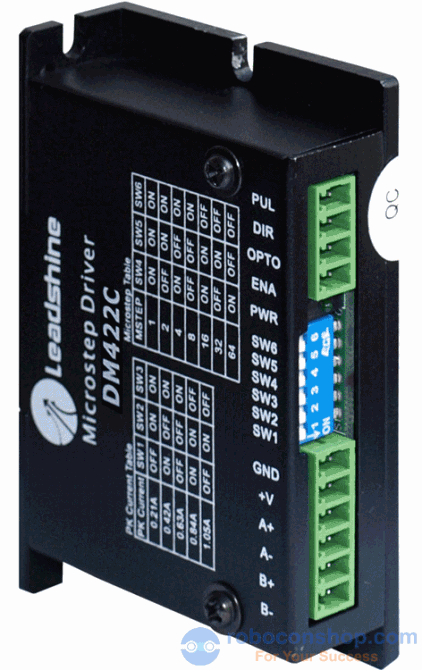

Step Driver DM422C 2 Phase Digital Stepper Drive; Max 40 VDC / 2.2A

Datasheet: PDF

The DM422C is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the DM422C an ideal solution for applications that require low-speed smoothness

Features
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +40 VDC
Output current programmable, from 0.3A to 2.2A
Pulse input frequency up to 75 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes
