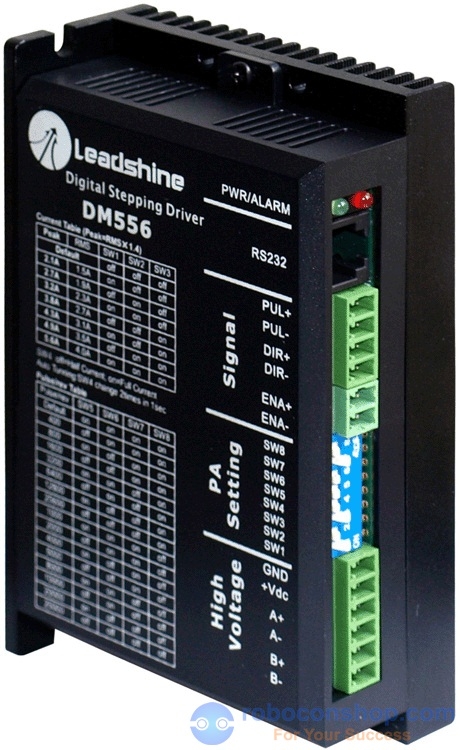

Step Driver DM556 2 Phase Digital Stepper Drive; Max 50 VDC / 5.6A

Thương hiệu: Leadshine | 556, dm556, drive,

Đánh giá

:

Giá

:

2.750.000₫

Mô tả :
Đang cập nhật ...
Giao hàng trong và ngoài nước

Giao hàng trong và ngoài nước

Ship COD toàn quốc chỉ 22k
(trọng lượng <= 2kg)

Ship COD toàn quốc chỉ 22k (trọng lượng <= 2kg)

Đổi trả sản phẩm trong vòng 7 ngày

Đổi trả sản phẩm trong vòng 7 ngày

Giá sỉ cho đơn hàng từ 10 sản phẩm

Giá sỉ cho đơn hàng từ 10 sản phẩm

Datasheet: PDF

The DM556 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The Self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives in the markets. Its unique features make the DM556 an ideal solution for applications that require low-speed smoothness.

Features
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +50 VDC
Output current programmable, from 0.5A to 5.6A
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes
